NISSAN NAVARA INTERCOOLER NP300
SKU: IK-NP300-FGive your D23 NP300 Navara’s YS23DDTT motor much needed relief from high intake temperatures. Independent testing has proven that this unit reduces air intake temperatures by around 40°C resulting in 6kW increase in power and 20Nm increase in torque (without tuning).
It’s not uncommon for these motors to have air intake temperatures of over 90°C causing high engine operating temperatures and loss of power, so if you’re tuning for more power, installing an HPD intercooler upgrade is an absolute must. This intercooler kit is easy to install and non-invasive which means no cutting or drilling is required for most models.
HPD has developed a charge pipe adaptor with a dual seal to eliminate any leaking issues that have become a hallmark of the factory intercooler system.
The factory Nissan intercooler core size is 540x155x80mm, giving a surface area of 840cm², and a volume of 6700cc.

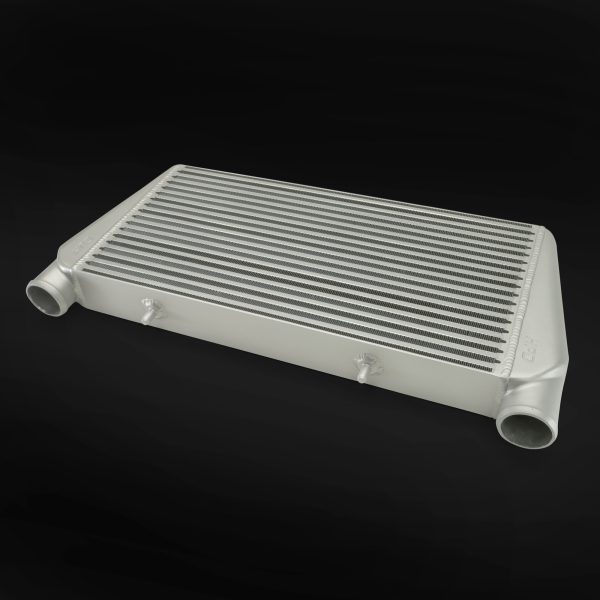

Our upgrade intercooler measures 600x300x76mm, giving a massively improved surface area of 1800cm², and a simply HUGE volume of 13680cc.
That’s an increase of over 200% in surface area cooling and charge air cooling volume!
PLEASE NOTE: Models with big chassis end plates will require modification to fit this intercooler.
NOTE: If your car is equipped with Forward Emergency Braking radar system, this may need to be relocated in order to install the intercooler kit. Please check compatibility with your vehicle.

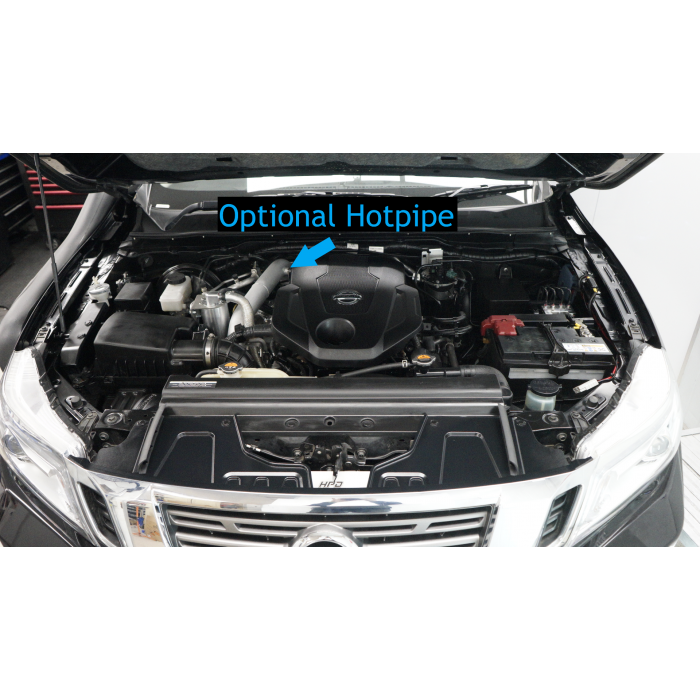

Hot pipe:
HPD also offer an optional replacement Hot pipe which eliminates the factory pipe commonly found to leak oil back on top of the turbocharger. We have designed a twin sealing coupling that outperforms OE and also eliminates the factory baffles. Hotpipe includes retaining clip.
*Please note – HPD Hot Pipe is not compatible with stock intercooler & piping*

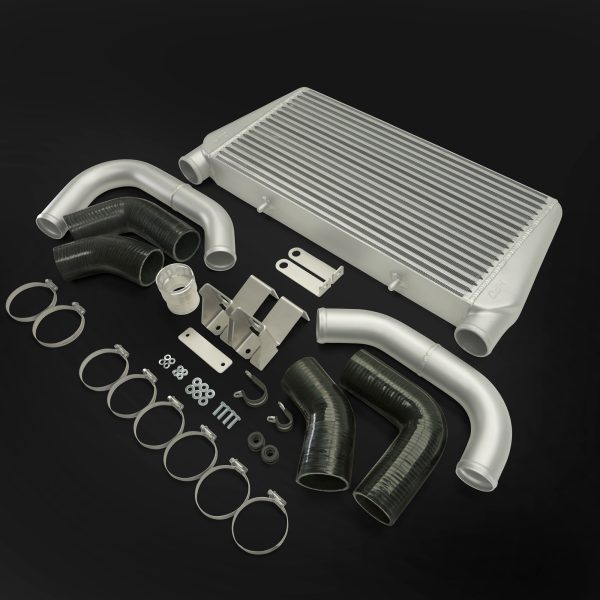

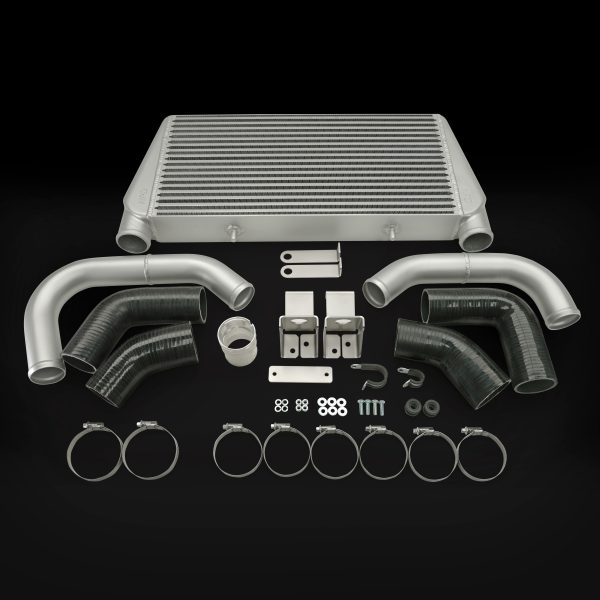

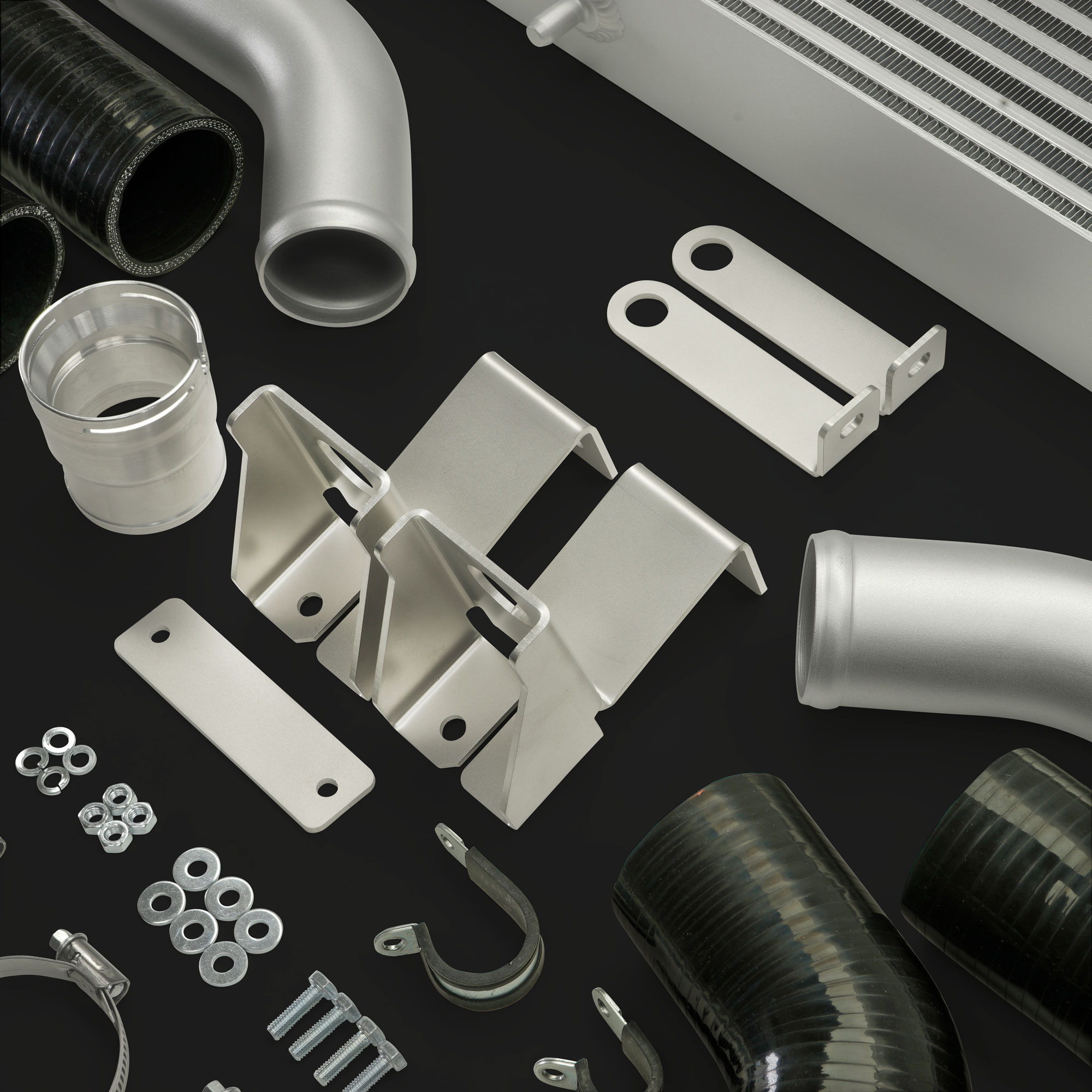

Kit features:
- Bar & Plate Core 600x300x76mm
- Alloy mandrel bent piping
- Billet charge pipe adaptor
- Quality silicone hoses and load rated German made clamps
- Laser cut mounting brackets
- Hot side piping 57mmø
- Cold side piping 57mmø
- No cutting of radiator support for piping
HPD 4WD intercooler kits are designed to give amazing performance, reliability, consistent and sustainable power. By reducing inlet temperatures you will also reduce engine running temperatures.
The comprehensive kit has been manufactured with careful research and development. Each kit is vehicle specific with a heat exchanger, alloy mandrel bent piping, quality silicone hoses and fittings.
Our Intercooler Kits are easy to install with basic workshop tools and backed by the HPD team who can help you at any step of the way. With our dealer network Australia wide, you guys that don’t like to get your hands dirty can have your kit installed by a qualified technician. Our front mounted intercoolers don’t suffer from heat soak from high under bonnet temperatures like top mounted intercoolers or water to air intercoolers which at low speed – hard slogging can increase inlet temperatures.
HPD intercooler kits suit all the leading aftermarket turbo kits that don’t have an option for intercooling, allowing you to increase the performance, reliability and fuel efficiency of your 4WD.
SKU: IK-NP300-F
Mount: Front
Make: Nissan
Model: Navara D23 NP300 2.3L
OCC-B-NNP300
OC-KT-AT-NP300
